36' x 132' Barn with 15 Stalls, 8' x 132' Overhang, Oxford, CT
-

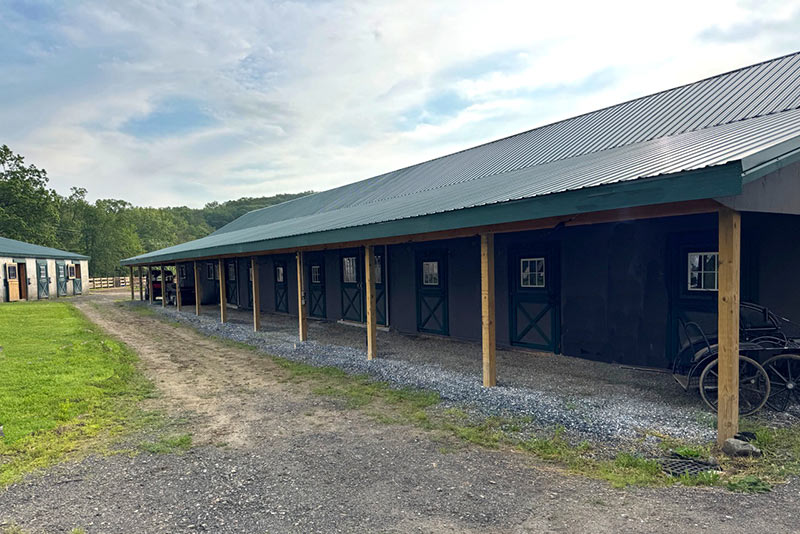

8' x 132' Overhang on one side.
-

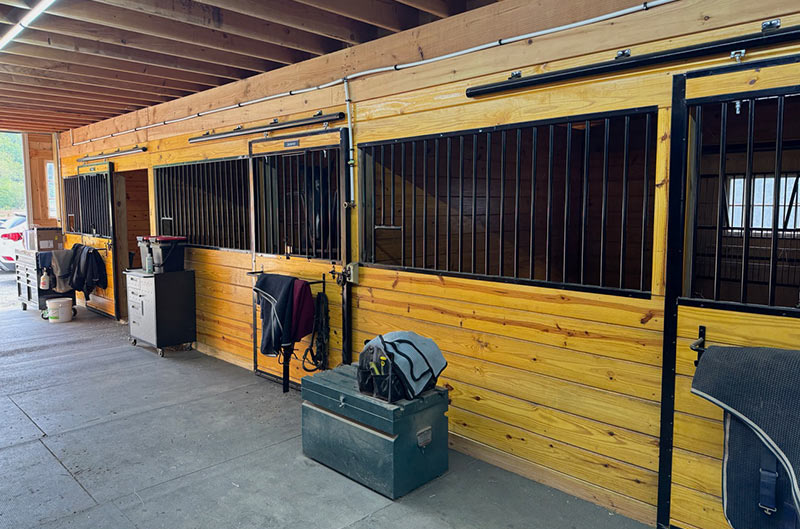

15 Stalls with powder coated metal work.
-

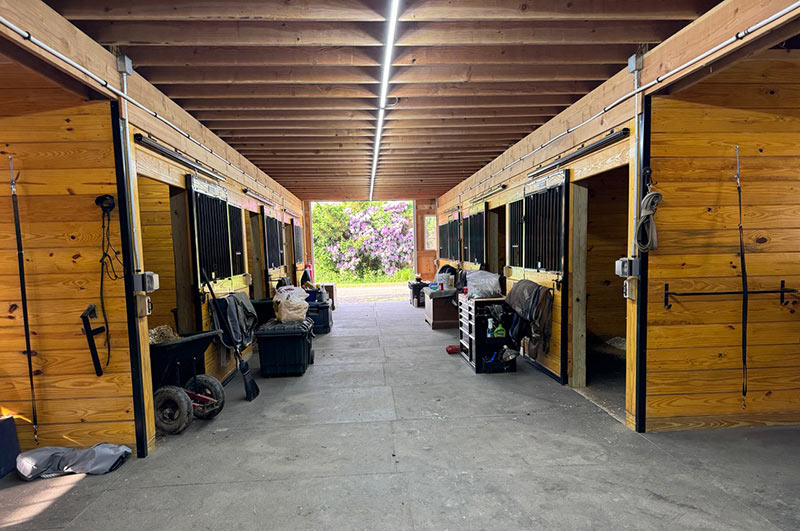

Center Aisle with 15 Stalls, Tack/Feed and Wash Room, 4 Open Areas

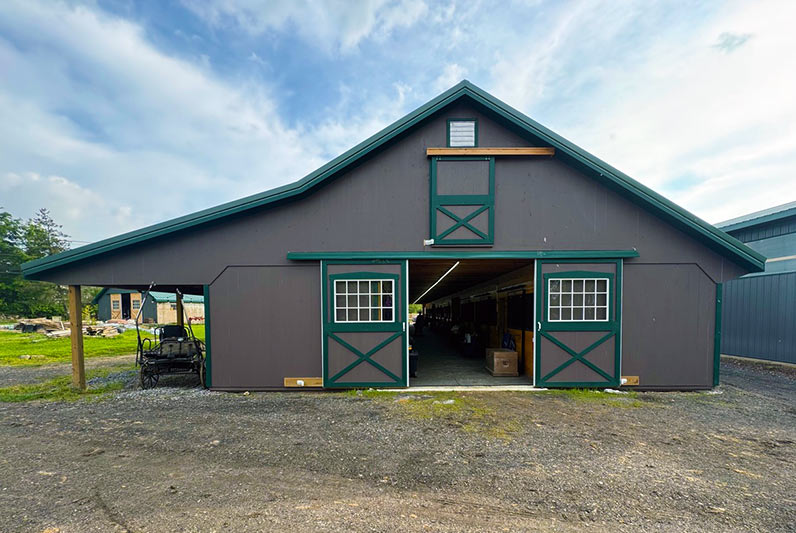

36' x 132'' Barn with 15 Stalls, Tack/Feed & Wash Room, Oxford, CT
• Pier footing foundation prepared using 18” tubes, 36” deep filled with concrete
• 6” x 6” pressure treated base around perimeter of building
• 2” x 10” header system with 2” x 4” bracing and blocking
• 2”x 4” ties and purlins, 24" on center
• 2” x 10” rafters with 2” x 4” purlins 2’ on center
• 6/12 pitch on barn
• 12” overhang on each gable
• Wood soffit and fascia
• 1” x 10” T&G pine siding –painted charcoal with two coats. Trim Evergreen.
• 29-gauge metal roof with sound barrier insulation – green metal roof
• 8’ x 132’ overhang on one side. Two foot overhang on other side.
•15 - 12’ x 12’ stalls
• 1 - 12’ x 24’ tack/feed room with two 9-lite steel entry doors. One 4’ x 3’ vinyl window, no guard.
• Tack room has 4” of concrete with broom finish.
• Insulating with R-19 and line the tack/feed room with 1” x 8” EWP (Eastern White Pine)
• 4’ x 6’ interlocking rubber mats in stalls, with stone 4" of stone dust
• 1 - 12’ x 12’ washroom. One 4’ x 3’ vinyl window, no guard. 4” of concrete with broom finish.
• 4 - 12’ x 12’ open areas with four having sliding doors. Open areas have 4” of concrete with broom finish.
•12’ center aisle with concrete. 4” of concrete with broom finish.
• 6” x 6” pressure treated base around perimeter of building
• 2” x 10” header system with 2” x 4” bracing and blocking
• 2”x 4” ties and purlins, 24" on center
• 2” x 10” rafters with 2” x 4” purlins 2’ on center
• 6/12 pitch on barn
• 12” overhang on each gable
• Wood soffit and fascia
• 1” x 10” T&G pine siding –painted charcoal with two coats. Trim Evergreen.
• 29-gauge metal roof with sound barrier insulation – green metal roof
• 8’ x 132’ overhang on one side. Two foot overhang on other side.
•15 - 12’ x 12’ stalls
• 1 - 12’ x 24’ tack/feed room with two 9-lite steel entry doors. One 4’ x 3’ vinyl window, no guard.
• Tack room has 4” of concrete with broom finish.
• Insulating with R-19 and line the tack/feed room with 1” x 8” EWP (Eastern White Pine)
• 4’ x 6’ interlocking rubber mats in stalls, with stone 4" of stone dust
• 1 - 12’ x 12’ washroom. One 4’ x 3’ vinyl window, no guard. 4” of concrete with broom finish.
• 4 - 12’ x 12’ open areas with four having sliding doors. Open areas have 4” of concrete with broom finish.
•12’ center aisle with concrete. 4” of concrete with broom finish.
